Power Automate - Trigger a Flow from multiple Libraries/lists and sites

Introduction

In this blog post, we’ll explore how to trigger a single Power Automate flow from multiple SharePoint libraries, lists, and sites. This approach is particularly useful for standardizing workflows across different document libraries and sites, avoiding the need to replicate flows multiple times. This not only simplifies maintenance but also streamlines deployment.

The For a selected file or For a selected item trigger action is key to achieving this. While the Manually trigger a flow action was considered, it does not pass the necessary context (site URL, library ID/name, and item ID) to the flow, making it unsuitable for this scenario.

The Solution

The solution involves using the For a selected file or For a selected item action. You can configure the trigger by selecting any SharePoint site and library.

For a selected file Trigger Selected file trigger

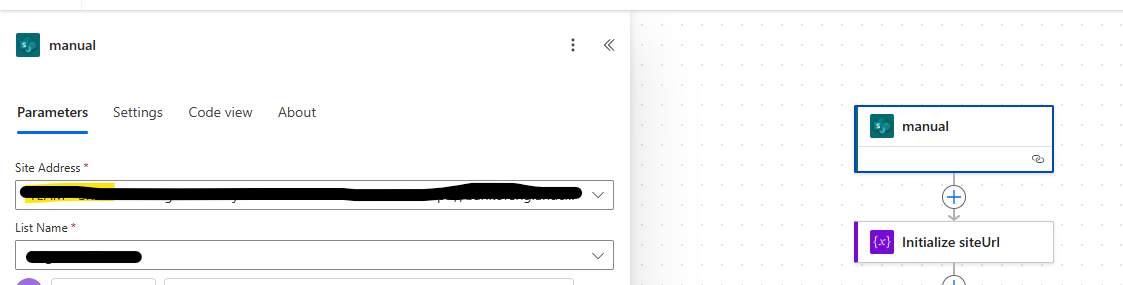

For a selected item Trigger Selected item trigger

Step-by-Step Guide

1. Configure the For a selected file or For a selected item Trigger

A flow is triggered from the executeFlow action using column formatting within a library. Here is an example of the JSON configuration:

Update the actionParams flow ID to correspond with your specific flow. This format consists of the environment ID followed by the flow ID, as it pertains to a flow within a solution in a managed environment.

{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "button",
  "txtContent": "Set to Approved",
  "customRowAction": {
    "action": "executeFlow",
    "actionParams": "{\"id\":\"v1/26763ce5-0000-0000-0000-d37e8bf80aaa/3156f74d-cdd8-42fd-bcd5-454fd521b961\", \"headerText\":\"Please enter the Last Approval Details\",\"runFlowButtonText\":\"Set to Approved\"}"
  },
  "attributes": {
    "class": "ms-fontColor-themePrimary ms-fontColor-themeDarker--hover"
  },
  "style": {
    "border": "none",
    "background-color": "transparent",
    "cursor": "pointer",
    "text-align": "left"
  },
  "children": [
    {
      "elmType": "span",
      "attributes": {
        "iconName": "CheckMark"
      },
      "style": {
        "padding-right": "8px"
      }
    },
    {
      "elmType": "span",
      "txtContent": "Set to Approved"
    }
  ]
}

Button trigger

When the button is clicked, the triggerBody will have the following format:

  • For a PDF file
 "body": {
        "entity": {
            "ID": 3,
            "itemUrl": "https://contoso.sharepoint.com/teams/d-team-playground/ApprovedControlledDocuments/Forms/AllItems.aspx?id=%2Fteams%2Fd%2Dteam%2Dplayground%2FApprovedControlledDocuments%2FDocument1%2Epdf&parent=%2Fteams%2Fd%2Dteam%2Dplayground%2FApprovedControlledDocuments",
            "fileName": "Document1.pdf",
            "FileId": "3"
        }
    }
  • For an Office File
"body": {
        "entity": {
            "ID": 1,
            "itemUrl": "https://contoso.sharepoint.com/teams/D-TEAM-Site/_layouts/15/Doc.aspx?sourcedoc=%7Bd99c035a-49e3-49ec-a4a4-05f2d1f2817f%7D&action=edit&uid=%7BD99C035A-49E3-49EC-A4A4-05F2D1F2817F%7D&ListItemId=1&ListId=%7B70D252A6-9C4F-42E5-BED5-B2A126D0C5CE%7D&odsp=1&env=prod",
            "fileName": "Document.docx",
            "FileId": "1"
        }
    }

For a SharePoint List Item

"body": {
        "text_1": "3",
        "date": "2025-05-13",
        "entity": {
            "ID": 1,
            "itemUrl": "https://{siteurl}/_layouts/15/listform.aspx?PageType=4&ListId=%7B9AA7C048-D3D8-4C75-934A-D1C491432CE5%7D&Source=https%3A%2F%2F{siteurl}2%2FLists%2F{listurl}%2FAllItems.aspx&RootFolder=%2F{siteUrl}2%2F{listurl}&ID=1&ContentTypeId=0x0100B0E7B25049CA144199BDE02D715D0EC9001017085E671B4E46A1ABEA6141816A6D",
            "fileName": "Email Comms",
            "FileId": "1"
        }

2. Extract Site URL and Library/List ID

Next steps is to work out the siteurl and libraryId/ listid from the itemUrl. This process differs slightly for PDF files and Office files/SharePoint list items. In this example, we’ll focus on office files/SharePoint list items. using itemUrl. The itemUrl for a file is: https://contoso.sharepoint.com/teams/D-TEAM-Site/_layouts/15/Doc.aspx?sourcedoc=%7Bd99c035a-49e3-49ec-a4a4-05f2d1f2817f%7D&action=edit&uid=%7BD99C035A-49E3-49EC-A4A4-05F2D1F2817F%7D&ListItemId=1&ListId=%7B70D252A6-9C4F-42E5-BED5-B2A126D0C5CE%7D&odsp=1&env=prod or https://{siteurl}/_layouts/15/listform.aspx?PageType=4&ListId=%7B9AA7C048-D3D8-4C75-934A-D1C491432CE5%7D&Source=https%3A%2F%2F{siteurl}2%2FLists%2F{listurl}%2FAllItems.aspx&RootFolder=%2F{siteUrl}2%2F{listurl}&ID=1&ContentTypeId=0x0100B0E7B25049CA144199BDE02D715D0EC9001017085E671B4E46A1ABEA6141816A6D

Site Url

Add an ‘Initialize variable` action for siteUrl and use the following expression to retrieve it.

   join(take(split(triggerBody()?['entity']?['itemUrl'], '/'), 5), '/')

Explanation:

  • split(triggerBody()?[’entity’]?[‘itemUrl’],’/’): The split function splits the itemUrl string into an array of substrings using the / character as the delimiter.

  • take(split(triggerBody()?[’entity’]?[‘itemUrl’],’/’), 5): The take function takes the first 5 elements from the array created by the split function.

  • join(take(split(triggerBody()?[’entity’]?[‘itemUrl’],’/’), 5),’/’): The join function joins the first 5 elements of the array back into a single string, using / as the separator.

Output The output of the function is https://contoso.sharepoint.com/teams/D-TEAM-Site

LibraryId / ListId

Add a ‘Initialize variable` action for libraryId/ListId and use the following expression to retrieve the libraryId/listId.

replace(replace(split(split(decodeUriComponent(triggerBody()?['entity']?['itemUrl']), 'ListId=')[1], '&')[0],'}',''),'{','')

Output The output of the function is D99C035A-49E3-49EC-A4A4-05F2D1F2817F

3. Use Variables in Subsequent Actions

You can now use these variables in subsequent actions,e.g. to get file properties/get item or perform other operations. SharePoint file properties Get File properties

SharePoint List Item properties

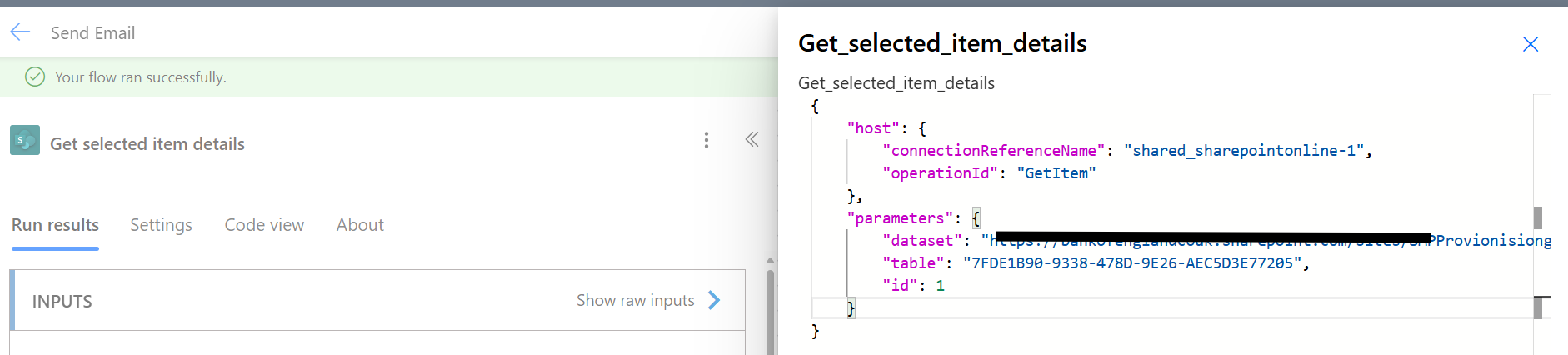

Get item properties

4. Change Run-Only Permissions

Amend the run-only permissions of the connections to run under a service account if using premium actions. This avoids requiring end users to create their own connections to run the flow.

Run only permissions

Limitations

  1. Contextually the flow will appear only on the specified SharePoint site and library and won’t appear in other libraries.

flow on selected item

  1. The itemUrl format is different for folders and non office files, like PDF , hence ensure the expressions to retrieve libraryid, siteUrl are amended to reflect those differences.

  2. The method specified will work for ‘for a selected file’ trigger only

Thoughts

  1. Trigger based on contentype rather than location would have been great but is not possible.
  2. Trigr custom product by Encodian, read Deploy a Power Automate Flow to multiple SharePoint libraries or lists for more info.
  3. Considered One Flow to handle them all - how to subscribe to multiple SharePoint lists with one Flow but required some testing as Proof of concept hence gave up on the idea.
  4. Considered When an HTTP request is received trigger but it could not be triggered using executeflow function within column formatting. It would have required SPFx extension to trigger it.

Conclusion

By using the For a selected file or ``For a selected item` action and the provided expressions, you can effectively trigger a single Power Automate flow from multiple SharePoint libraries and sites. This approach simplifies workflow management and ensures consistency across your SharePoint environment.
